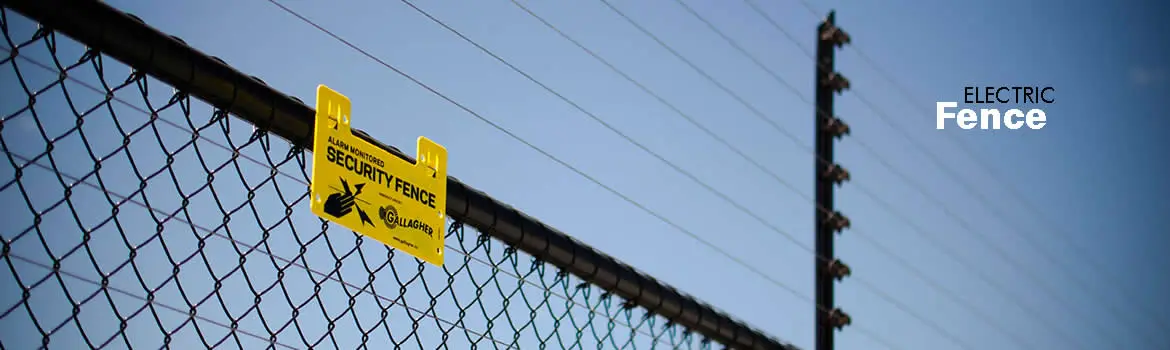

Commercial Electric Perimeter Fencing Port Harcourt

E-infotech Systems and Telecommunications Limited engineers, tensions, and maintains high-voltage electric perimeter fencing for industrial compounds, residential estates, and corporate facilities. Physical walls provide passive deterrence. We convert passive boundaries into active intrusion detection networks by deploying enterprise-grade energizers, braided metallic wire grids, and integrated alarm relays tailored to the specific environmental realities of Port Harcourt.

High-Voltage Energizer Specification and Output Metrics

The core of any electric fence system is the energizer unit. E-infotech Systems rejects low-capacity residential units for commercial deployments. We specify and mount commercial energizers (such as Nemtek or specialized heavy-duty units) rated between 5 Joules and 8 Joules of output energy.

These units discharge high-voltage, non-lethal electrical pulses across the wire grid at precisely timed one-second intervals. The voltage output ranges from 7,000V to 10,000V depending on the specific model calibration. This high voltage overcomes the natural electrical resistance of human skin and heavy clothing, delivering a severe muscular shock that physically repels intruders attempting to scale the perimeter wall.

The energizer actively measures the return voltage on the wire loop. If an intruder attempts to cut the wire, short the positive wire to the ground wire, or throw a heavy conductive object across the strands, the energizer detects the immediate drop in return voltage. Once the return voltage drops below the calibrated threshold (typically 3,000V), the internal relay triggers the primary alarm sequence.

Physical Wire Architecture and Tensile Strength

Coastal areas and heavy industrial zones in Rivers State expose exterior hardware to extreme humidity, saline air, and chemical particulate fallout. Using standard galvanized wire results in rapid oxidation and rust, which breaks the electrical conductivity of the fence.

We strictly utilize 1.6mm solid aluminum wire or 1.2mm braided stainless steel wire for the primary conductive lines. Aluminum provides four times the conductivity of standard steel wire and generates a natural oxide layer that prevents deep structural corrosion.

Our technicians mount the wire to heavy-duty, UV-stabilized nylon bobbin insulators. Standard plastics degrade and shatter after 18 months under the intense Nigerian sun. UV-stabilized bobbins retain their structural integrity for up to ten years. We space the wire strands at exact 100mm intervals vertically. This tight spacing prevents intruders from separating the wires to slip through without initiating contact. At corners and directional change points, we install heavy-duty spring tensioners. The springs absorb kinetic impact and compensate for thermal expansion and contraction of the metal wires during extreme temperature shifts.

High Tension (HT) Cabling and Gate Transitions

Routing high-voltage pulses underneath vehicle access gates or across structural gaps requires specialized cabling. Standard electrical wire cannot contain 10,000V pulses; the voltage simply arcs through the PVC jacket to the nearest grounded metal surface, causing continuous false alarms.

E-infotech Systems technicians install specialized High Tension (HT) cables. These cables feature a double-insulated, heavily extruded polyethylene jacket rated for 15,000V. We route the HT cable through buried galvanized steel conduits beneath driveways to connect the primary fence array to the sliding gate contacts. For the gates themselves, we install in-line sliding gate contacts that maintain the high-voltage loop when the gate closes and safely isolate the gate array when it opens for vehicle transit.

System Grounding and Lightning Isolation

Electric fences act as massive antennas during Port Harcourt thunderstorm seasons. Direct or nearby lightning strikes induce massive voltage surges directly into the perimeter wiring. Without strict isolation, these surges travel back through the HT cabling and detonate the primary energizer's motherboard.

We drive 1.5-meter copper-bonded earth rods directly into the soil at regular intervals along the perimeter wall. We connect the ground wires of the fence grid directly to these earth rods. Near the energizer, we install dedicated lightning diverters. The diverter features a precisely calibrated spark gap. During standard operation, the 10,000V fence pulse cannot jump the gap. However, when a 100,000V lightning surge hits the wire, the voltage easily arcs across the spark gap and routes directly into the deep earth rods, bypassing the energizer hardware entirely.

Battery Backup and Power Redundancy

The electric fence must remain armed during localized grid failures. We connect the energizer unit to a dedicated, double-conversion Uninterruptible Power Supply (UPS) housed within the main security control room.

Additionally, the energizers contain internal 7Ah or 9Ah 12V sealed lead-acid backup batteries. The internal charging circuit maintains these batteries at float voltage while main grid power is active. If the facility loses power, the internal battery assumes the primary load, keeping the 10,000V pulse active for up to 12 hours depending on total wire distance and vegetative interference. For remote installations without grid access, we deploy localized solar arrays and deep-cycle battery banks to power the energizer directly.

Alarm Integration and GSM Dialers

An active shock deters casual intruders, but physical breaches require immediate security team notification. We wire the energizer's dry contact relays directly into the facility's main burglar alarm control panel and CCTV NVR boards.

When the energizer detects a voltage drop, it triggers 120dB physical sirens mounted on the exterior walls and activates high-intensity strobe lights. Simultaneously, the connected GSM (Global System for Mobile Communications) dialer module transmits automated SMS text messages directly to the facility manager and the E-infotech response center. We divide long perimeters into distinct electrical zones. The GSM text message specifically identifies which zone triggered the alarm (e.g., "ZONE 3 BREACH: NORTH WAREHOUSE WALL"), directing security personnel to the exact physical location immediately.

Contact E-infotech Systems at 51 Isiokpo Street, D/Line, Port Harcourt. Call +234 814 708 2637 or +234 803 270 3288 to schedule a perimeter survey and receive a technical specification quote for a commercial electric fence deployment.
